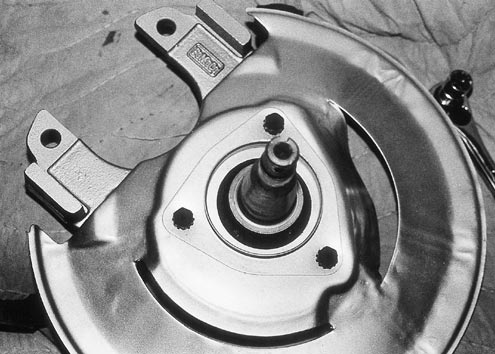

Rule No. 1 is to do only one side at a time—especially since this type of detailing will take longer than a couple days. We left our driver-side spindle assembled so that we would have a guide. We also consulted the service manuals and discovered that some parts were missing—namely the caliper stabilizers. In the disassembly process, you’ll need to remove the dust shields and all associated parts for bead blasting.
P85192_image_large

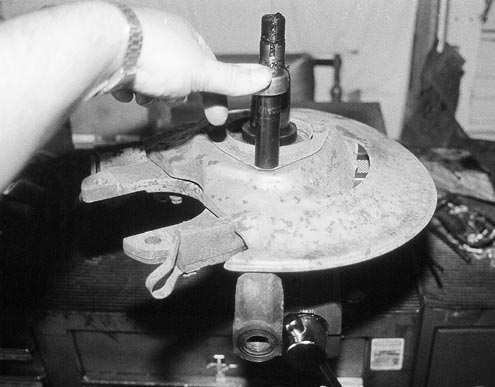

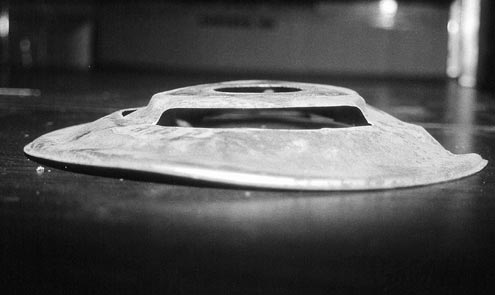

Our dust shield was like most of these—bent. The best way to determine the condition is to set the shield on the spindle side and view it as shown. This will allow you to determine where to whack it with your body hammer.
P85193_image_large

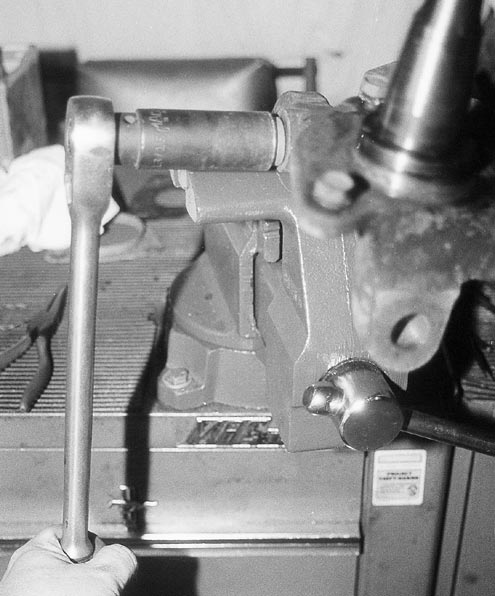

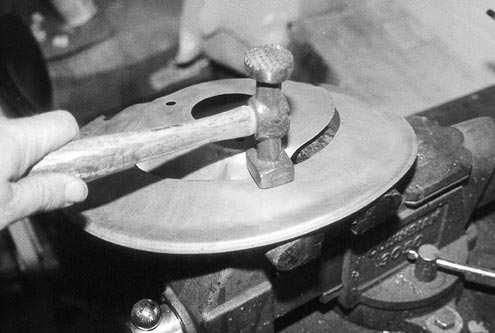

We used our vice as a body dolly to maneuver the metal to the correct position. If your shields are missing or damaged beyond repair, contact Perogie for replacements, as it carries a full line of good used parts.
P85194_image_large

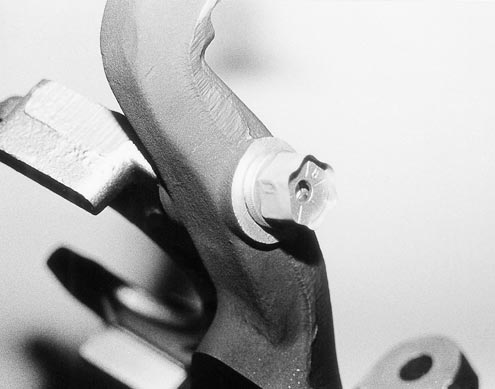

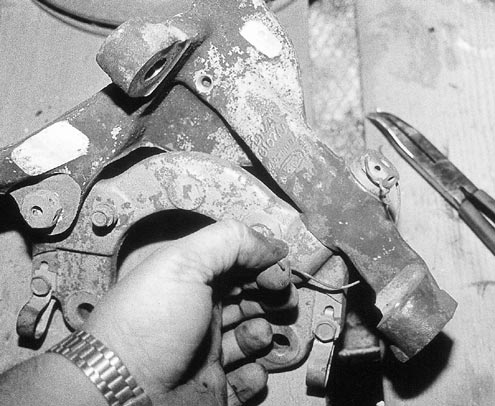

Safety wire should be wrapped through both of the caliper mounting bolts and each should have wire wrapped around the closest spindle arm. If this wire or the caliper bolt is missing, then definitely replace them.
P85195_image_large

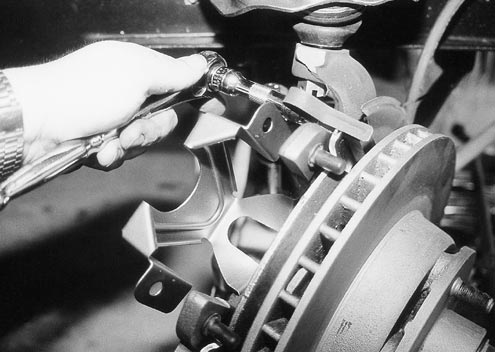

These caliper mounting bolts will hopefully have to be removed with a breaker bar. We say hopefully because you’ve probably been riding around on these babies, and they hold the brakes on the car.
P85196_image_large

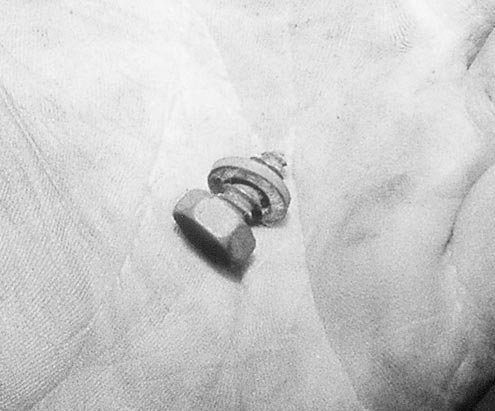

When we disassembled the caliper brackets, one of the caliper retaining clip bolts had been broken off in the hole, and this little jewel was cranked into the hole with two washers. Rather than attempt to remove the old bolt shard, we replaced the caliper mount.
P85197_image_large

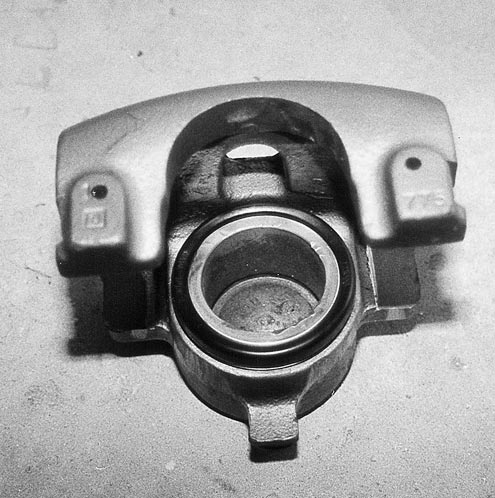

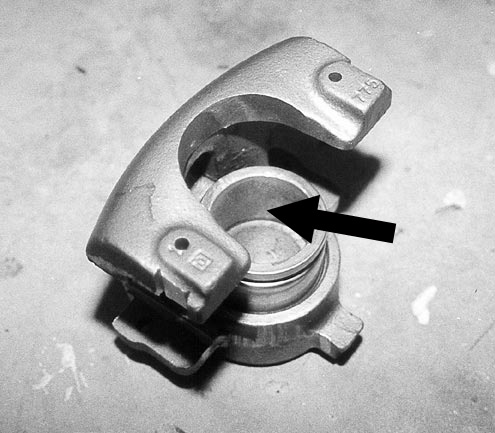

The calipers will need to be refinished. We removed them and used compressed air to remove the piston. Use a 2x4-inch piece of wood and place it in the slot between the piston and outer pad mount (arrow). Sixty pounds of air pressure should pop the piston.
P85198_image_large
After we popped out the piston, we used brake cleaner to thoroughly remove all brake fluid residue, and then we bead-blasted the caliper and piston, being careful not to overheat an area. Once the bead-blasting was completed, we used compressed air to remove any errant glass from the caliper. We then chased the threads on the caliper with our taps.
P85199_image_large

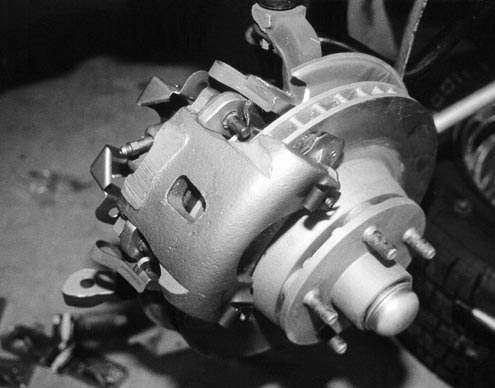

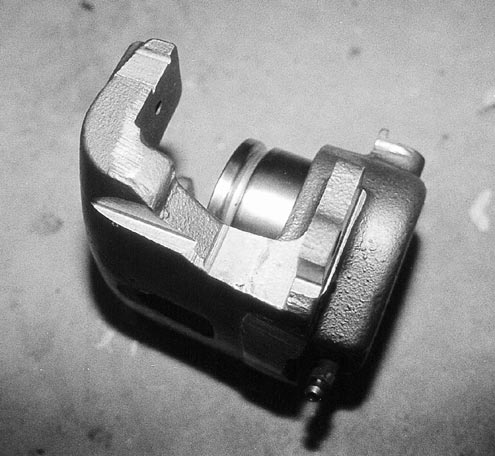

Obviously, there are other options out there. You can get new calipers from National Parts Depot (NPD) or the local parts store. We like the choices that NPD offers, but felt that our original date-coded calipers were what we needed here. After the blasting was completed, we used Cast Coat paint to avoid surface rust, and then we hit the machined surfaces with bright silver to give the impression of fresh machine work. We also went to NAPA for the reseal kit.
P85200_image_large
Our Rabestos pads go well with the new pad retainer pins and clips. Replace the clips if yours have lost their spring tension. Though not dangerous, this will help keep the pad from sliding when the brakes are applied.
P85201_image_large

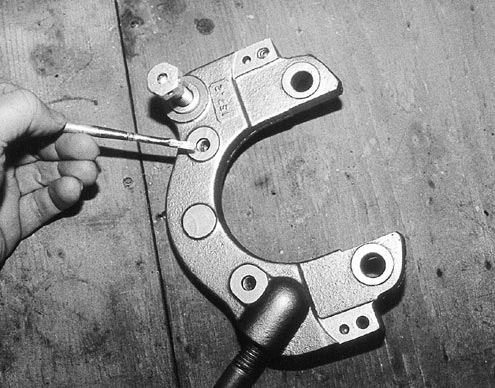

We bead-blasted the spindle, caliper mounts, bolts, and attaching hardware. We used Eastwood’s detail gray for the paint on the caliper mounts. After the detail gray dried, we applied silver paint to the caliper-mounting bracket to mimic the machined finish.
P85202_image_large

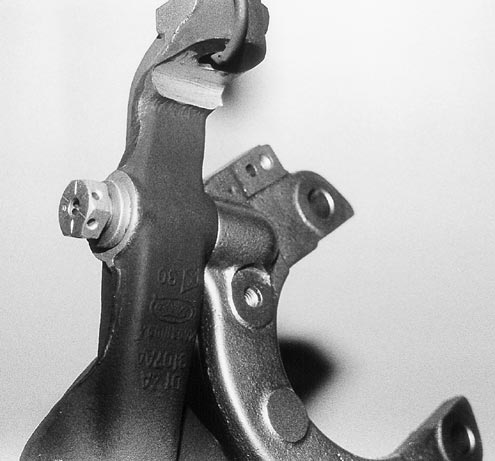

The spindles were painted Martin Senyor high-temp flat black to mimic the original heat treating that Ford did to the spindles. The machining work was performed after heat treating, so we used our Testors silver paint to get the look of machined metal.
P85203_image_large
The caliper retaining bolts were painted with Dupli Color steel-wheel silver. On the bolts, we sprayed some of the finish to be applied, and then waited for it to dry. After we tightened the bolts, we sprayed some paint into a can cap and brushed it on to hide any scarring, which might have resulted from the wrench through the electrical tape.
P85204_image_large
We painted our rotor splash shields with the Dupli Color steel-wheel finish. The serrated washer bolts were painted Martin Senyor flat black.
P85205_image_large

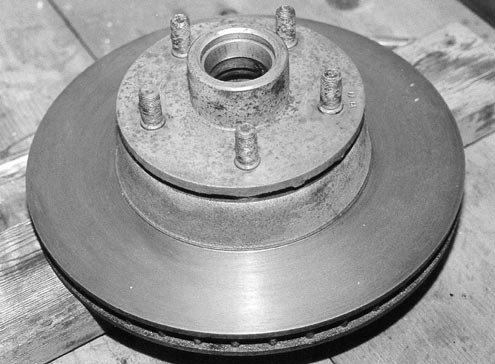

We had our rotors turned at the local NAPA. After we got the rotor home, we used Ph-ospho-ric (available at most automotive paint stores) and a scuff pad to clean the rust off the rotor. Afterward, we used brake cleaner and lacquer thinner to remove any residue from the rotor. We then applied POR-15’s manifold paint from Classic Restorations and heat-cured it with a propane torch. If you do this, be sure to keep the flame moving. The best course is to have the rotors heat-cured.
P85206_image_large

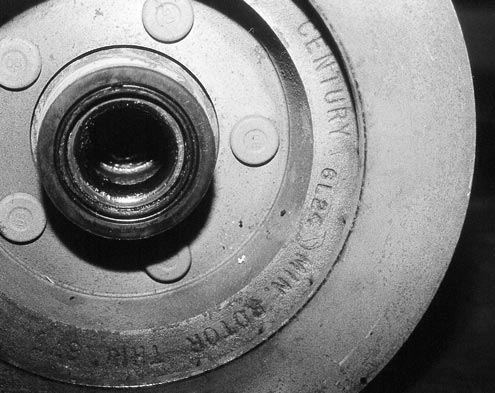

After you have heated the rotor (and after it has cooled, ouch), grease the inner bearing and tap the new seal into position. Our rotors are dated 6L24, making them replacements; the correct date code would have been in the neighborhood of 2F11. No matter. They appear to be the correct style.
P85207_image_large

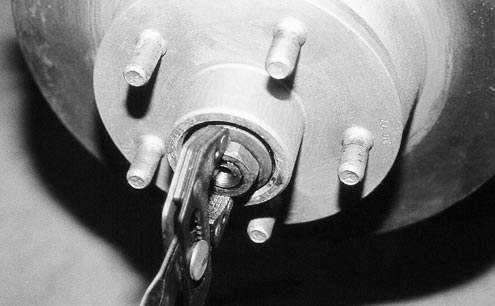

After you have installed the inner seal, mount the rotor to the hub, and install the greased outer bearing, washer, and nut. We tightened the nut to center the rotor on the hub, and then backed off the nut until we had good free rotation. We then installed the nut lock and cotter pin.
P85208_image_large

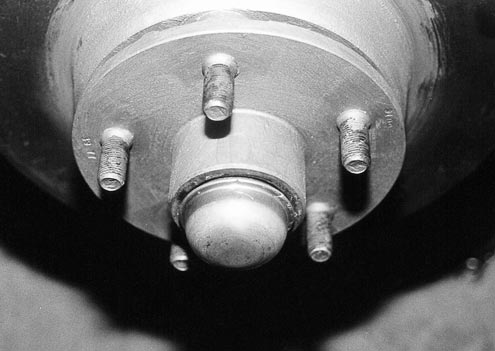

We secured a new cap from NPD. There is nothing like having a shiny new cap on your well-done rotor. Be careful not to whack the cap too hard. If it isn’t fitting, file off some of the metal at the edge of the cap rim. Remember that force is not an option here!
P85209_image_large
Next, we went back to the caliper-mounting plates and popped in the new isolator from NPD. There should be two per side, and they are pulled through as shown.
P85210_image_large

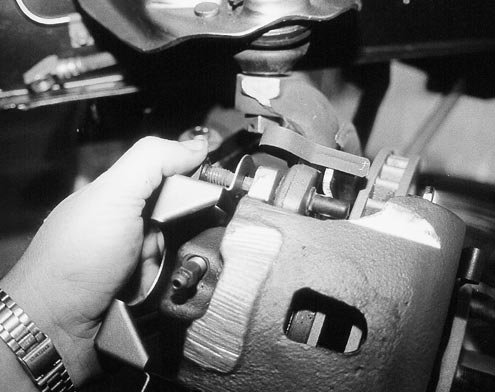

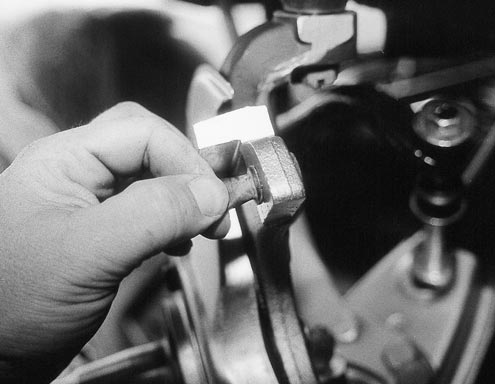

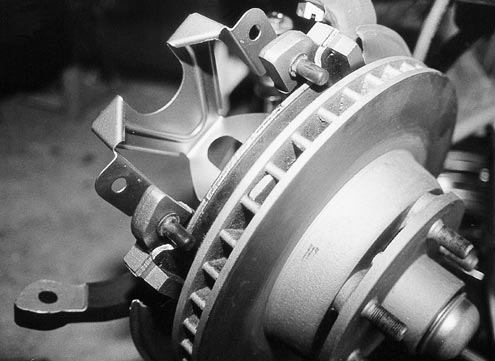

We put the caliper on with the new pads in place and mounted our stabilizer from Perogie. The bolts that hold it on are flat black. Be sure to leave it loose for the caliper. We painted the stabilizer with Eastwood detail gray.
P85211_image_large

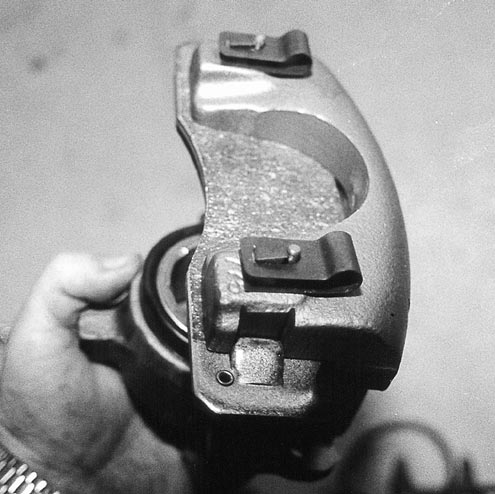

We slipped the inner pad into place and applied the pad retainer clips into position. The clips don’t appear to be flat black like the bolts that retain them, but they are.
P85212_image_large
With the caliper in place, we set the new caliper-locating pins into position and tightened them down. With that completed, the front end is almost ready to go.
P85213_image_large

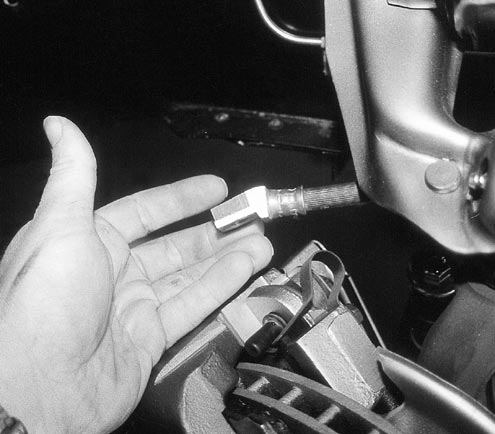

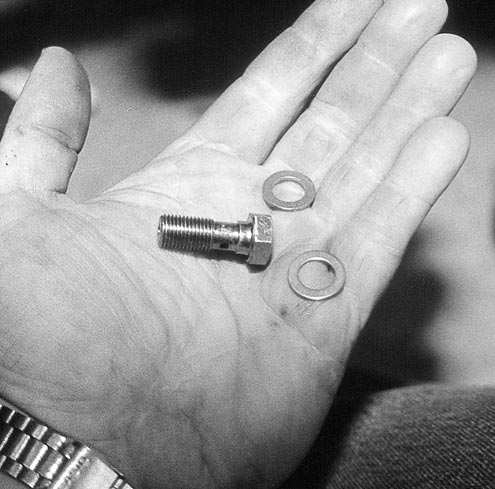

We went the extra step and obtained two new concours-correct hose bolts for the calipers. These red anodized bolts and copper washers from NPD add the final touch to the brake system.
P85214_image_large
Unfortunately, we’ll have to wait to use them. Without any load on the suspension, the NPD-provided hose would be too stretched if we applied them, so we’ll bag the hose and plug the hole until the suspension is fully loaded.

We begin the exciting task of detailing the front brakes on the '72 Mach 1 we call Lazarus. Our car is a competition-suspension car that featured the rear sway bar and stiffer rear springs. Our main concentration is not the rear right now, but the front. We'll cover the rear spring and differential installation at a later date. For now, we're at a fever pitch to get this Medium Bright Yellow reborn pony on its feet and ready for the rest of the parts that will complete the project.

The front suspension on these cars is similar to the '68-'70 cars with the exception of the steering box and/or power steering. Though we are detailing out the '72, many of the ideas we'll show can apply to your car. Of course, you will have to do your own research on your car to determine the paint daubs and color codes, but hey, that's part of the fun.

Something of this magnitude would not have been possible without the help of the folks at Inline Tube, who provided the correct color-coded brake lines in stainless. National Parts Depot also was invaluable and sent us the suspension parts we needed, while Perogie dug through its extensive used inventory to get us the impressive stabilizer brackets for the calipers and, thereby, helped put the finishing touches on the assembly.
