Jim Smart
June 1, 2000

Step By Step

View Photo Gallery
P126551_image_largeP126552_image_large

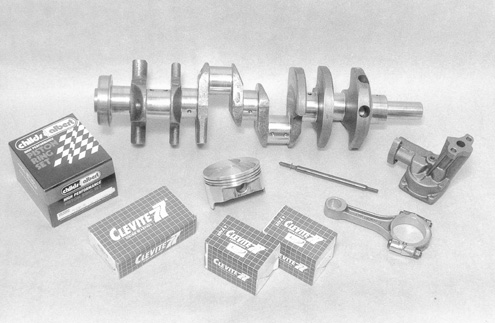

In standard form, the 347 Street Fighter consists of a nodular-iron crankshaft (3.400-inch stroke), Blue Thunder 5.400-inch-long connecting rods, Probe 4.030-inch hypereutectic pistons, Clevite bearings, plasma-moly piston rings and a high-volume oil pump. Coast gets the stroke by offset-grinding the crankshaft 0.060 inch. The block is bored 0.030 inch oversize. Most builds include a new block.
P126555_image_large
Coast pumps displacement up to 347 ci by including a unique custom piston that makes the 347 Street Fighter a more reliable engine than other available 347ci strokers.
P126564_image_large

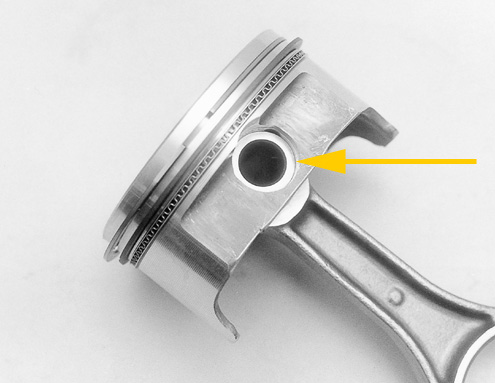

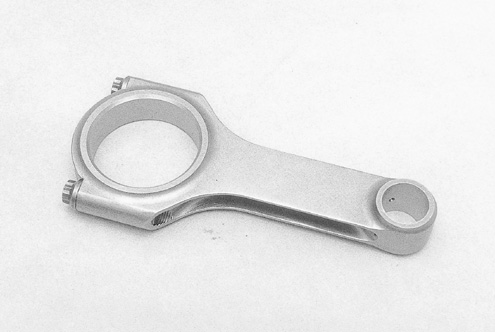

This design keeps the oil ring out of the wristpin hole (arrow), which eliminates oil-control problems. H-beam connecting rods are nice options if you intend to go racing or ring it tight on the street.
P126565_image_large
Even if you’re stroking an older 289 or 302, we suggest stepping up to a roller tappet camshaft in your 347. A more aggressive cam profile helps your engine digest more air and more fuel, which improves torque.
P126566_image_large

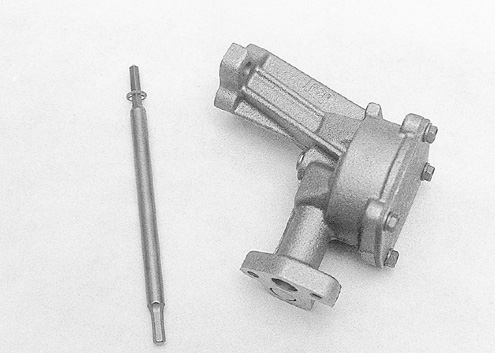

Coast High Performance uses high-volume oil pumps in all its Street Fighter engines. Volume—not always higher pressure—keeps things lubricated under demanding conditions. Remember that the rule of thumb with oil pressure is 10 psi for every 1,000 rpm. If you expect to tach your 347 to 6,000 rpm, then you’re going to need at least 60 psi of oil pressure at that speed.
P126567_image_large

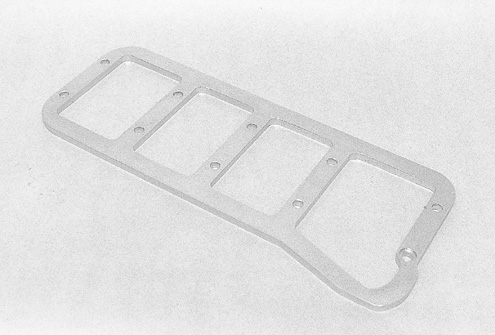

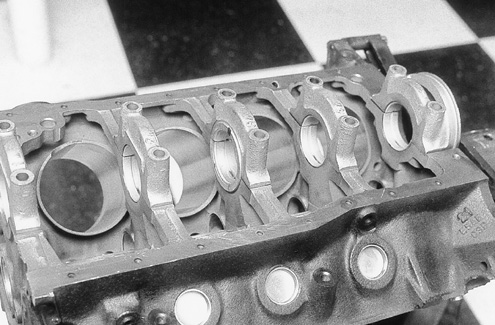

The optional main-cap girdle stiffens the block for high rpm use. Think of the stud girdle as you would the 427ci cross-bolt design: It stiffens the main caps.
P126568_image_large

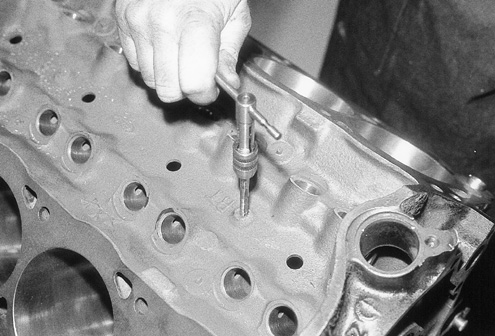

Our subject block was an ’84-’85 5.0L roller block that hadn’t been drilled and tapped for the roller lifter spider. It had to be drilled and tapped for spider bolts. Block cleanup is mandatory after this step.
P126569_image_large
What makes a Coast High Performance engine an extraordinary value is attention to detail. These aren’t mass-produced crate engines—they’re custom-built one at a time. All machined surfaces are checked and rechecked prior to assembly.
P126572_image_large
If you have the option, we suggest you step up to a late-model 5.0L block that incorporates the 360-degree oil seal. This is as leakproof as it gets and beats the older half-seals found in the 289 and 302.
P126574_image_large
Coast uses Clevite bearings, which are able to withstand a lot of punishment.
P126577_image_large
We’re using a mid-’80s 5.0L block for our 347 build. Everything has been machined, and the block is ready for checking and buildup.
P126579_image_large

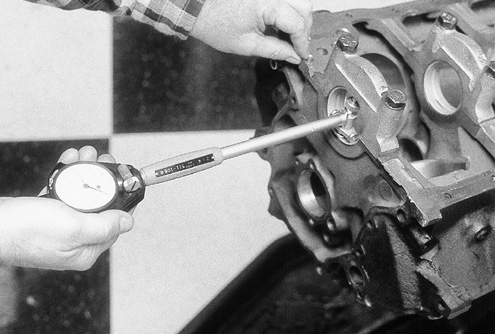

The main caps have been torqued to specifications, which allows engine builder Mark Jeffrey to check each main bearing.
P126580_image_large
Coast engines receive an abundance of assembly lube for a slippery start-up. No one wants the experience of dry bearings during a start-up. Jeffrey suggests priming the oiling system before the first fire-up.
P126584_image_large

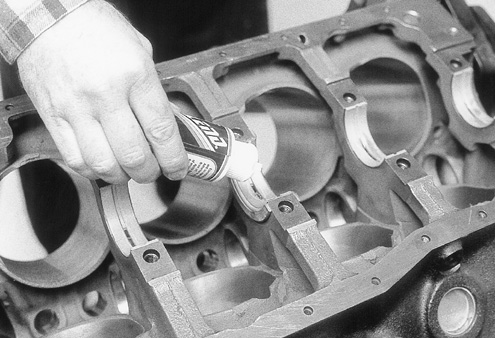

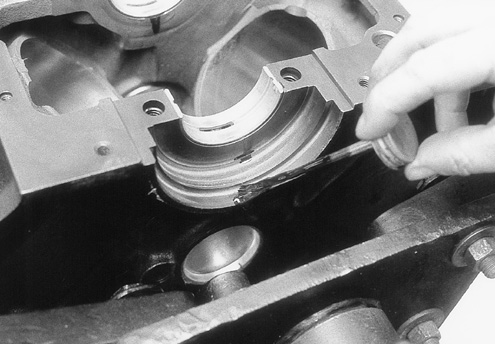

The rear main seal saddle receives a mild dressing of sealer before the crank is installed. This makes for a foolproof, leakproof seal.
P126586_image_large

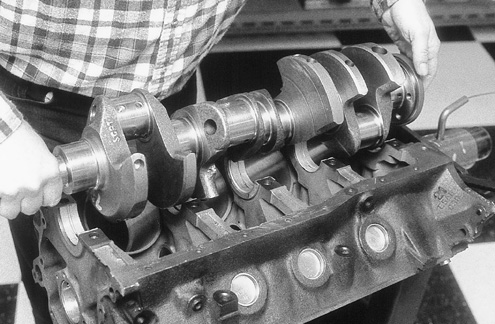

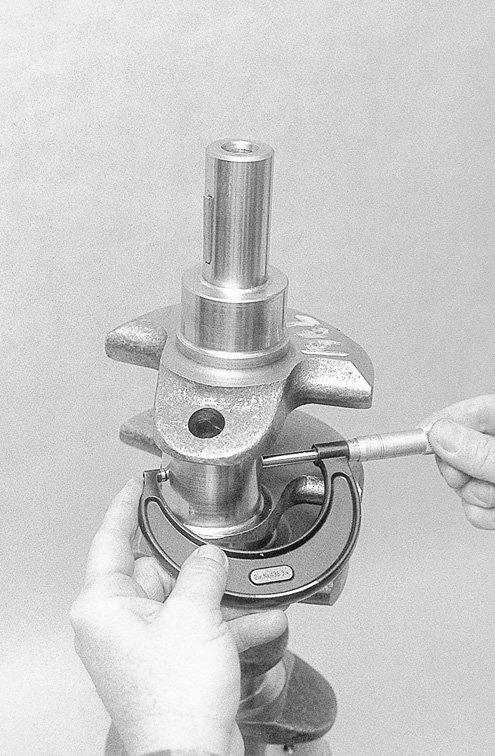

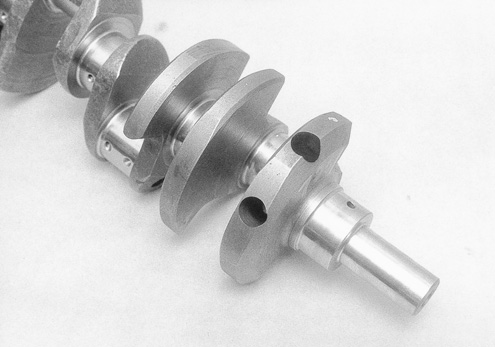

This is the custom-made, specially ground, cast-iron crankshaft that’s 347-specific.
P126587_image_large

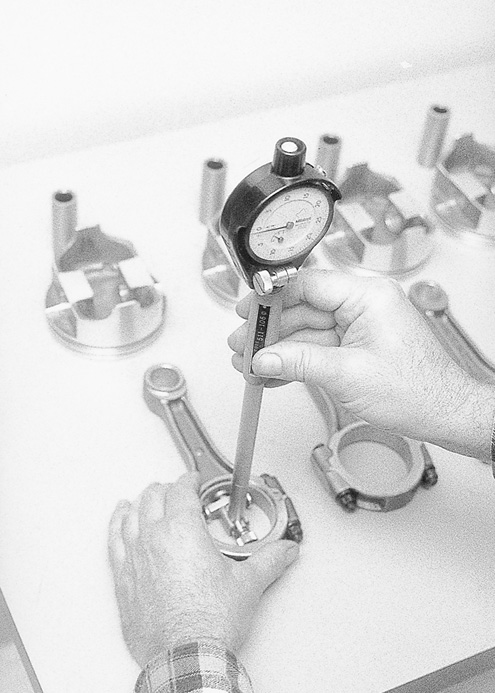

Rods are torqued to specs and checked with a micrometer as shown. Close attention to detail is critical here.
P126588_image_large

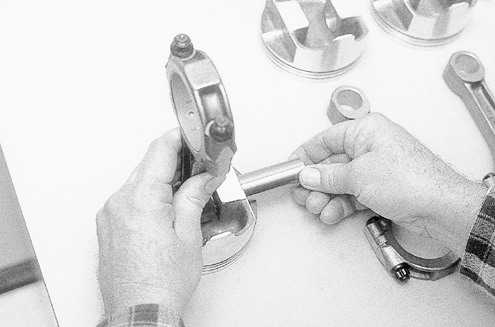

The 347 Street Fighter has free-floating piston pins, which eliminate any binding and improve flexibility.
P126591_image_large

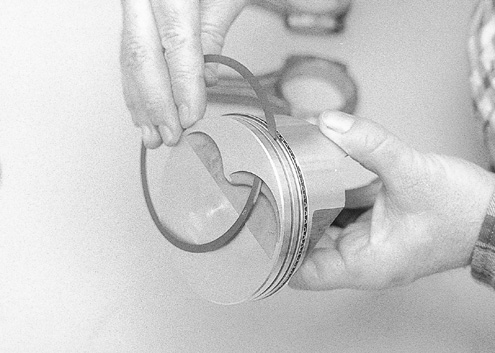

Plasma-moly piston rings provide a better seal and exhibit better wear qualities.
P126594_image_large

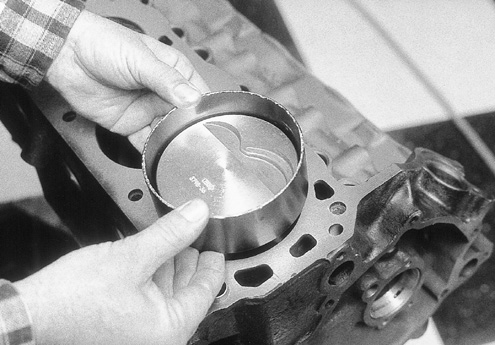

Coast uses this custom-sized piston ring compressor. It’s a taper-fit design that enables you to insert the piston into the bore without effort.
P126598_image_large

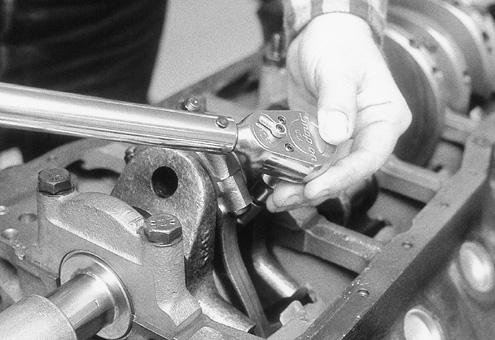

Coast High Performance double- and triple-checks torque readings on all its engine builds. Repeated checking means never having to say you’re sorry later.
P126618_image_large

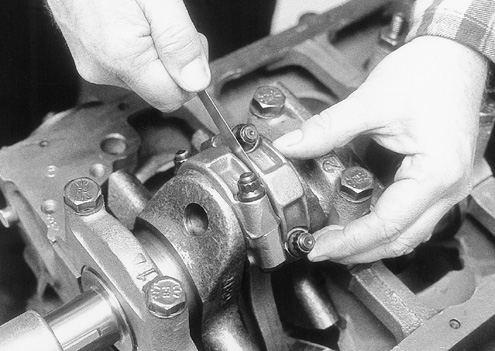

Rod- and crank-side clearances are checked and rechecked.
P126619_image_large

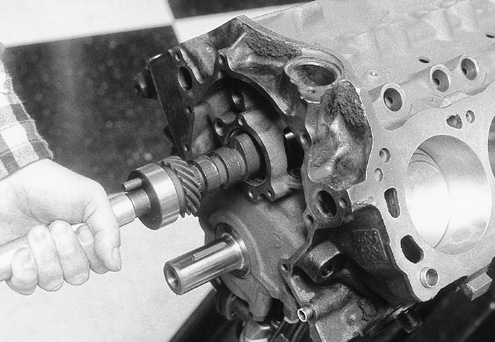

Jeffrey uses this slick cam installation tool to fit the roller cam. The tool screws into the cam for ease of installation, which enables Jeffrey to be gentle on the cam bearings and journals.
P126620_image_large

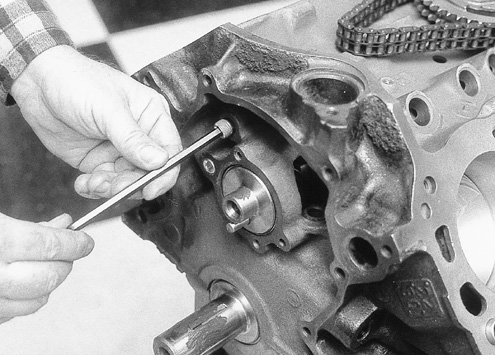

Coast High Performance uses screw-in oil gallery plugs instead of original equipment press-in plugs.
P126621_image_large

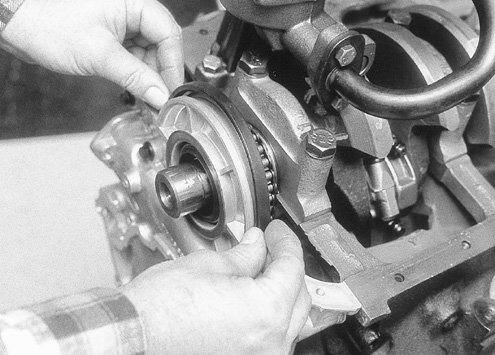

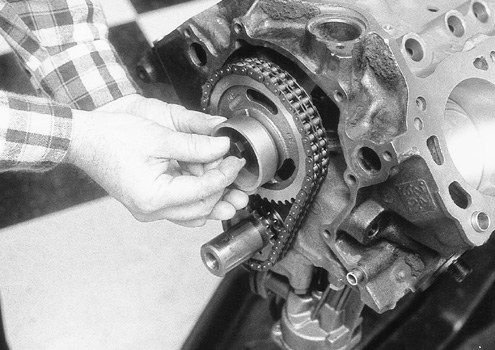

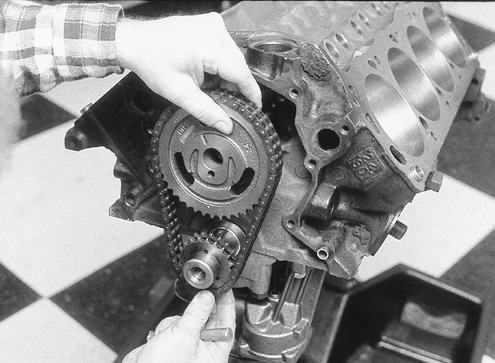

The cam plate and timing set are installed next.
P126622_image_large
Don’t forget to specify the fuel pump eccentric if your 347 is for a pre–fuel-injected Mustang.
P126623_image_large

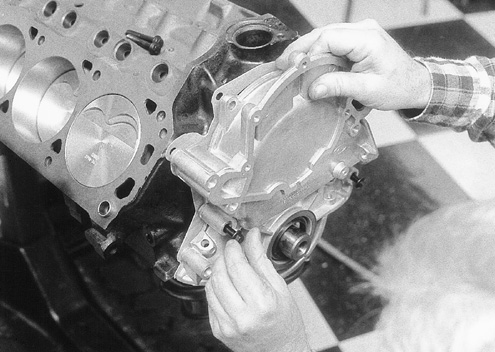

Coast uses new timing covers on its 347 Street Fighter. Be sure to specify your Mustang’s model year when ordering.
P126624_image_large
Next, the end gaskets are installed. For added protection against leaks, it’s a good idea to use sealer where the rail gaskets meet the end gaskets.
P126625_image_large

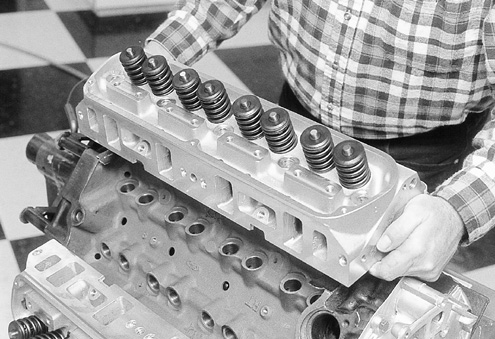

In this application, Coast is fitting the 347 with Edelbrock Performer heads. They flow better than a 351W head and weigh less. If you’re on a budget or desire a factory original appearance, then 351W heads are an affordable alternative. When using aftermarket heads, ascertain valve and chamber size before buying.
P126626_image_large

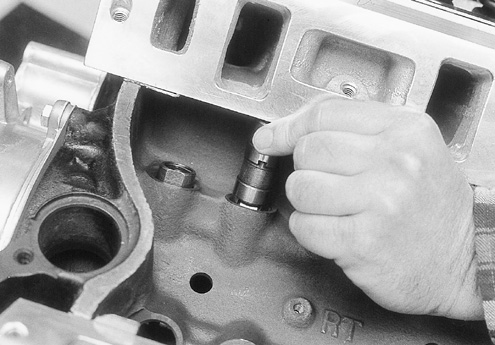

Roller tappets are installed next, along with the guides and the spider.
P126627_image_large

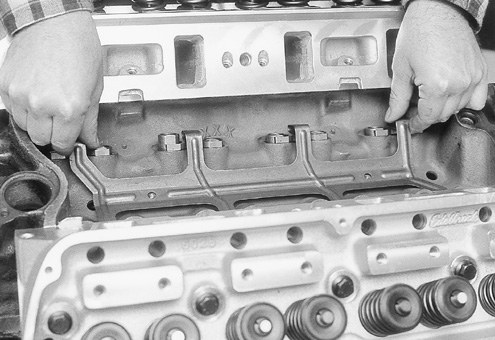

The spider holds the guides in place. Soak the lifters in 30W engine oil before installation.
P126628_image_large

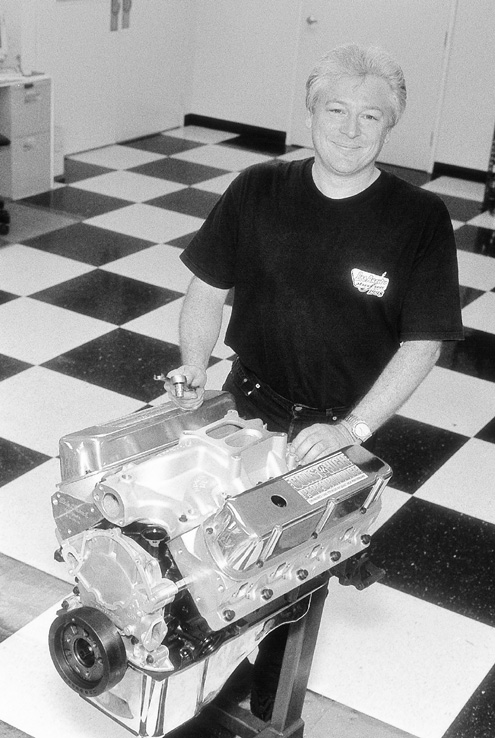

Our completed 347 Street Fighter is prime for early- or late-model Mustangs. Coast High Performance can outfit your 347 for any application.

What do you want to do with your 302? Coast High Performance brings you the 347ci Street Fighter small-block for classic and late-model Mustangs. It screams with fuel injection and sizzles nicely with a carburetor. So check your excuses at the door. It’s time to increase displacement for about the same money it costs to do a standard rebuild on an engine.

The 347 Street Fighter employs an offset-ground iron or steel crankshaft, brute-strength Blue Thunder connecting rods, Probe custom pistons, and a host of options designed to make the most of your build. If you want H-beam Probe connecting rods that can withstand a 7,000-8,000-rpm spin, then Coast can accommodate you. Billet crank? No sweat. Trick Flow or Edelbrock heads? Sure. For those of you in the vintage crowd, if you’re seeking a stock facade, then opt for 351W heads and an Edelbrock Performer intake manifold (paint it engine color!). Our message here is flexibility. You can build a higher displacement small-block without stepping up to a 351W block.
