Jim Smart
April 1, 2000

Step By Step

View Photo Gallery
P104070_image_large

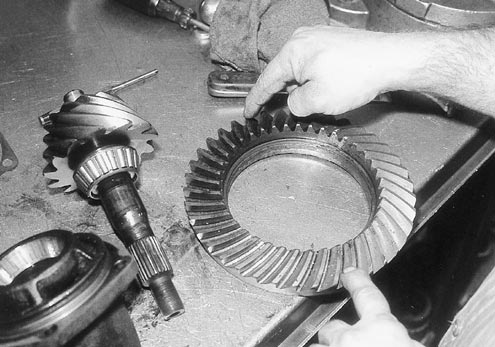

Rebuilding Ford’s venerable 8-inch third member is straightforward. All you need is a ring-and-pinion set (if yours is worn out) from Richmond Gear, differential side and pinion bearings, pilot bearing—ironically the most expensive bearing at $33—and the pinion seal.
P104071_image_large

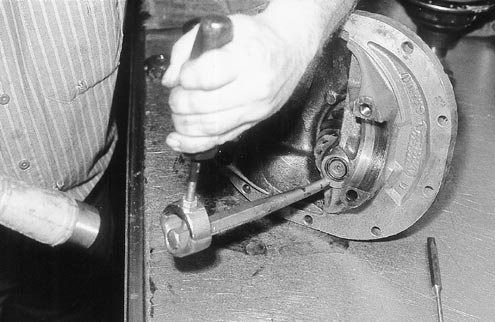

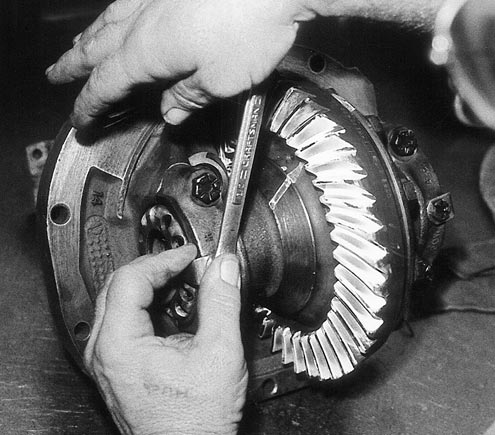

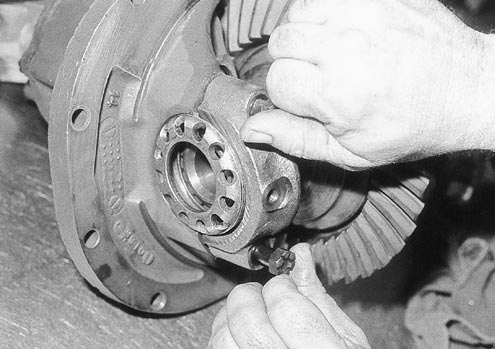

Disassembly begins with removal of the adjustment nut lock. A 1/2-inch wrench gets the job done.
P104072_image_large
Remove the differential side bearing caps.
P104073_image_large
Then remove the ring gear assembly.
P104074_image_large
Remove the ring gear from the differential.
P104075_image_large

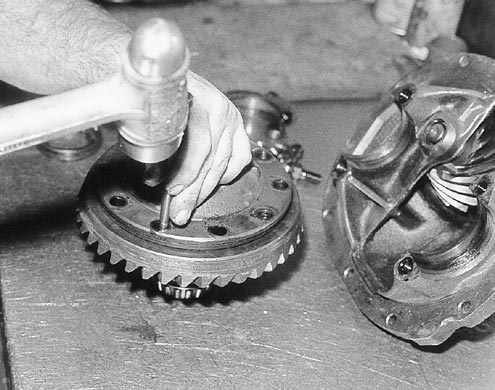

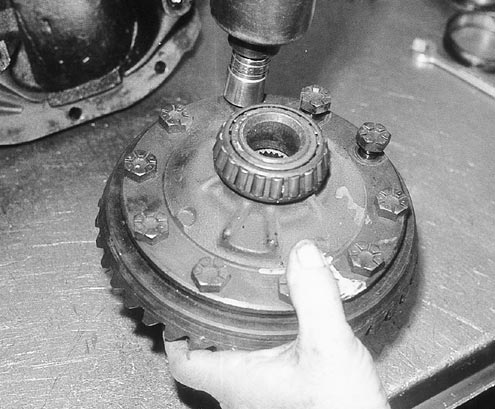

Sometimes the ring gear has to be driven from the differential with a punch. Drive the gear evenly for 360 degrees.
P104076_image_large

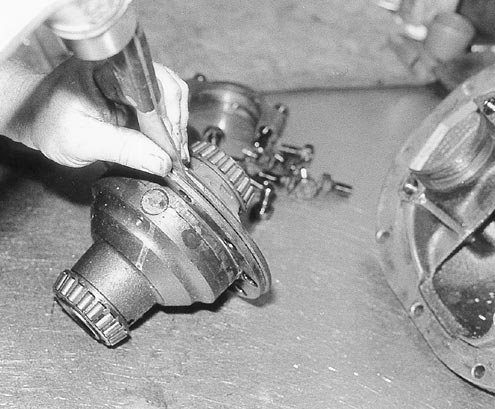

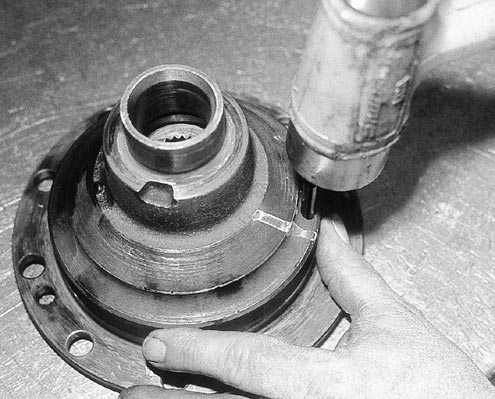

Divide the differential with a chisel or putty knife.
P104077_image_large

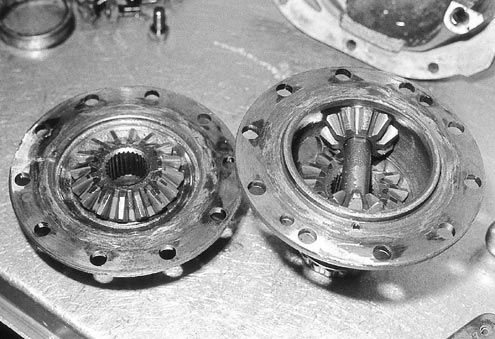

Once divided, you can see the side and pinion gears.
P104078_image_large
Once the tension pin has been removed, drive out the differential pinion shaft, which runs through the pinion gears.
P104079_image_large

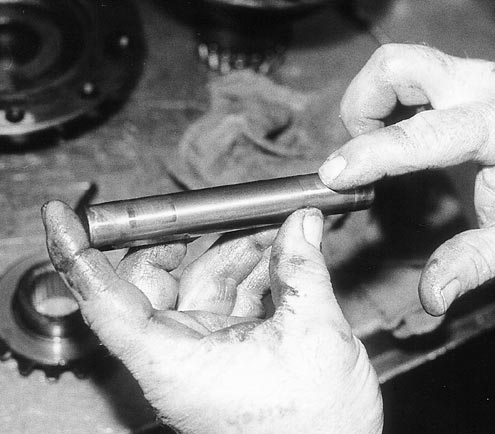

Differential pinion shaft wear needs a close look. Abnormal wear is cause for disposal.
P104080_image_large

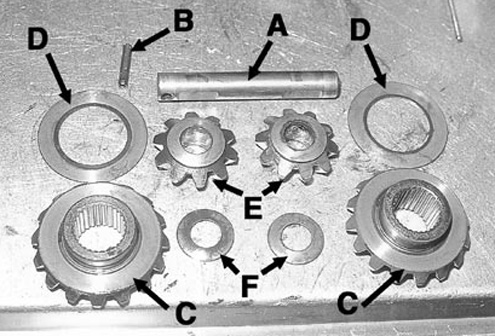

Here’s an exploded view of what makes a differential a differential. These parts allow your Mustang to turn right and left without tire scrub, so to speak. They allow the rear wheels to operate independently. The pinion shaft (A) supports the pinion gears (E). The tension pin (B) retains the pinion shaft. Side gears (C) are tied to the axle shafts. Thrust washers (D) are side bearings for the side gears. Thrust bearings for the pinion gears (F) give these gears something to bear against.
P104081_image_large

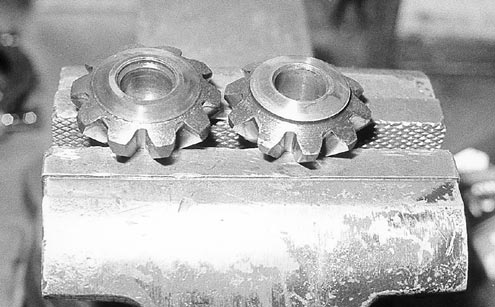

There are two basic types of pinion gears—one for limited-slip differentials (left) and one for conventional differentials (right). The limited-slip gear has a raised area to clear the clutch pack, but the conventional gear doesn’t. This means you can use the limited-slip pinion gear in a conventional differential, but you cannot use a conventional pinion gear within the limited-slip differential.
P104082_image_large

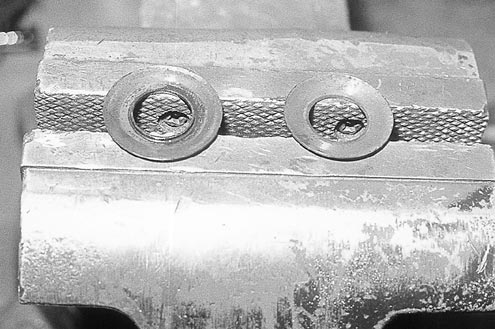

There are also two types of thrust washers that apply to each type of pinion gear.
P104083_image_large

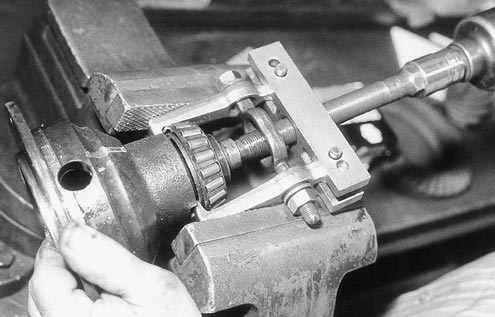

Differential side bearings are removed next. All you need is this puller, which can be rented or accessed at your neighborhood machine shop.
P104084_image_large
Next, pull the yoke. You might need a puller or a press to remove the yoke.
P104085_image_large

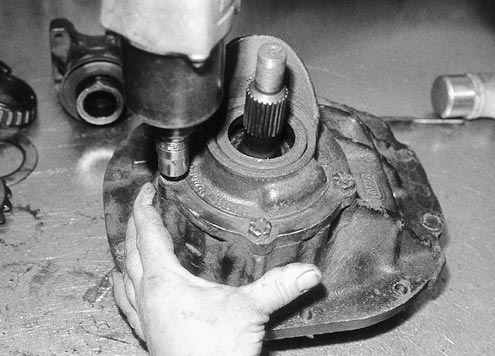

The pinion retainer is removed next.
P104086_image_large

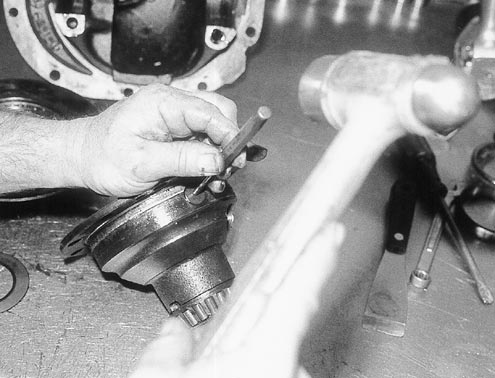

Sometimes the pinion retainer is stubborn. Drive the pinion assembly out with a punch by tapping the pilot shaft.
P104087_image_large

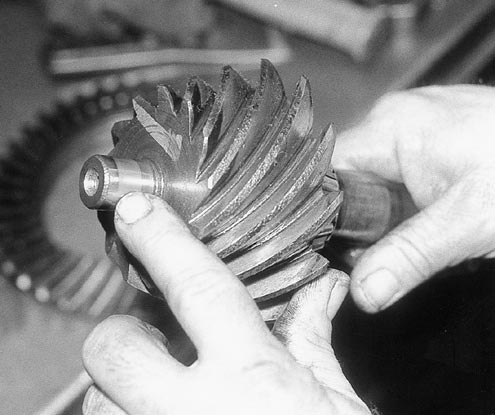

The pinion pilot shaft is a high-wear item and the leading cause of noise. Examine and measure this shaft per the Ford shop manual before going any further.
P104088_image_large

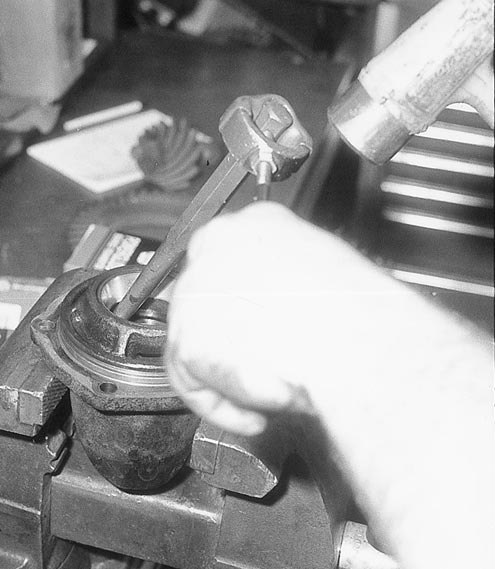

Drive out the pinion bearing races (cups) with a punch.
P104089_image_large

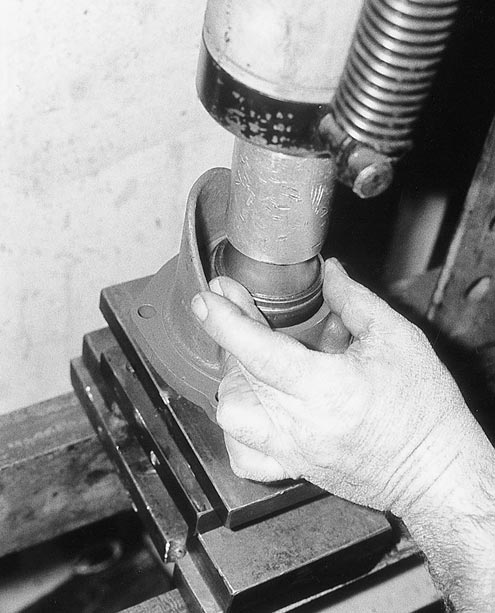

Use a press to drive in the new pinion bearing races. Take care not to score the contact surfaces.
P104090_image_large

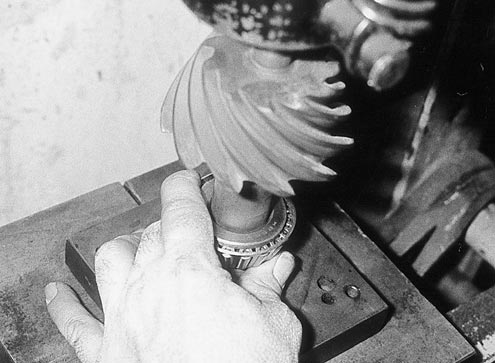

The Richmond pinion gear is pressed into a new NAPA bearing.
P104091_image_large

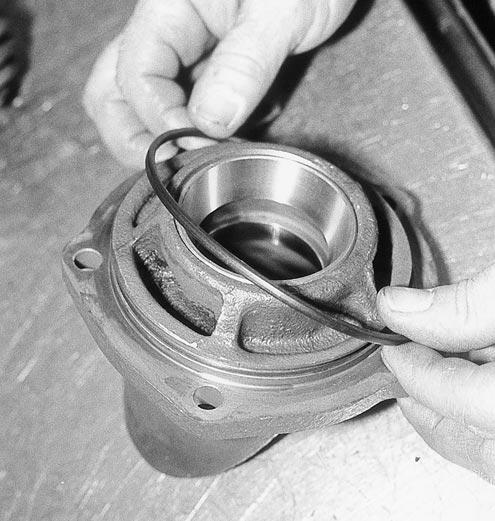

Believe it or not, a lot of folks miss this one. Lubricate and install the pinion retainer O-ring.
P104092_image_large

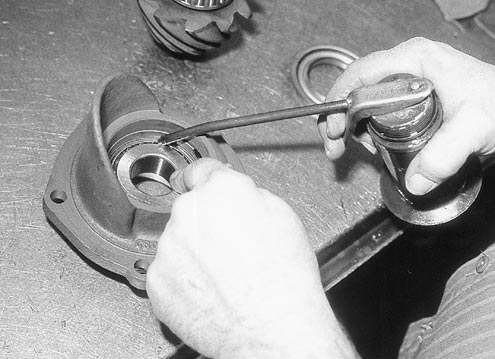

The outer pinion bearing is next. Use lots of lubrication (gear lube)...
P104093_image_large

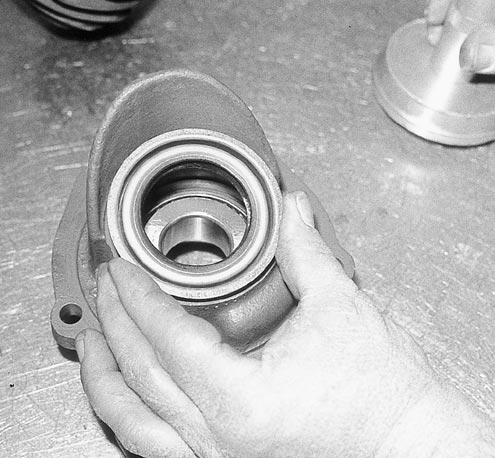

...and then drive the pinion seal into place.
P104094_image_large

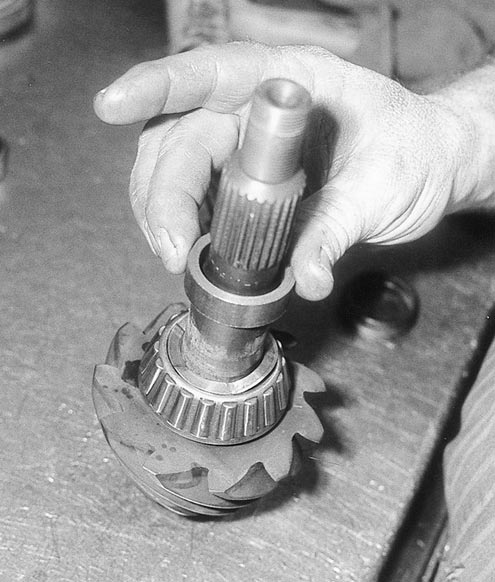

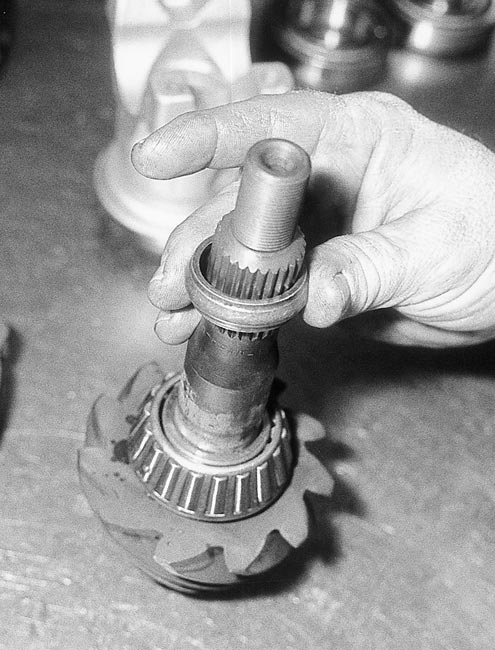

The pinion gear is fitted with a crush sleeve, which allows a certain amount of endplay in the pinion shaft. These crush sleeves must be replaced during service to allow accurate endplay.
P104095_image_large

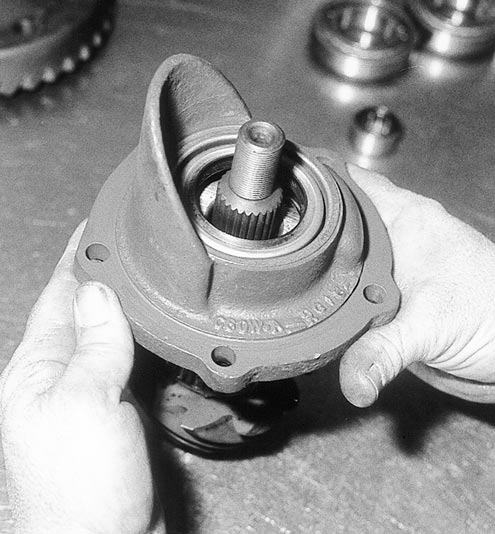

Slip the pinion retainer over the pinion shaft.
P104096_image_large

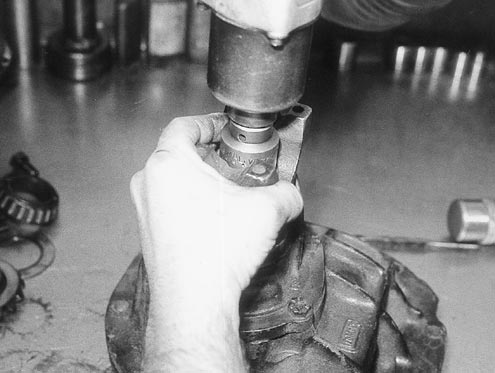

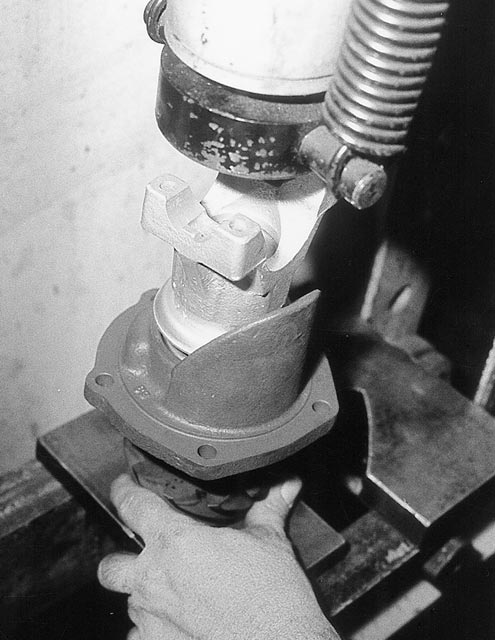

Press the driveshaft yoke into place, and then torque the nut to specs.
P104097_image_large
When a crush sleeve won’t cut the mustard, you must resort to a sleeve and shims. Where this differs from a crush sleeve is the use of shims to adjust endplay. Once again, check the Ford shop manual for correct endplay using the tools recommended.
P104098_image_large

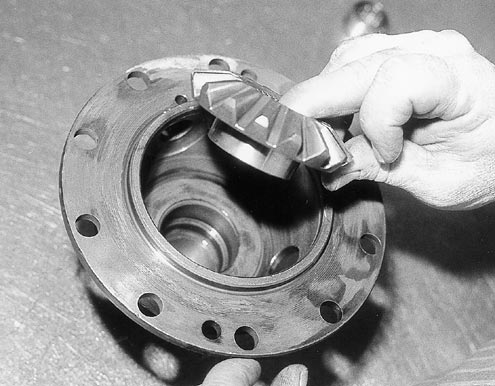

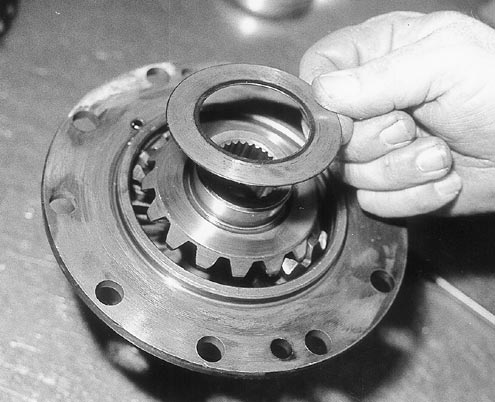

Install the side gears, making sure you lubricate and install the thrust washers first. There’s one on each side.
P104099_image_large

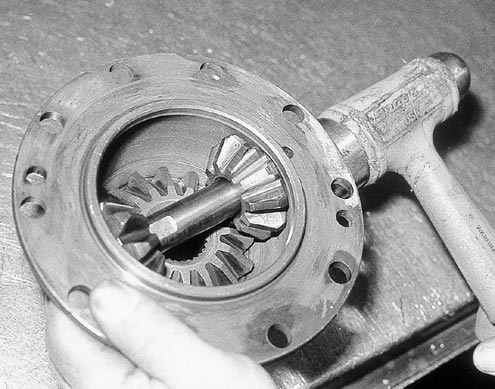

Pinion gears are next. Again, don’t forget lubrication and thrust washers. Drive the pinion shaft through.
P104100_image_large
Install the tension pin next, which retains the pinion shaft.
P104101_image_large
Install the other side gear and thrust washer, and then tie the two halves of the differential case together.
P104102_image_large

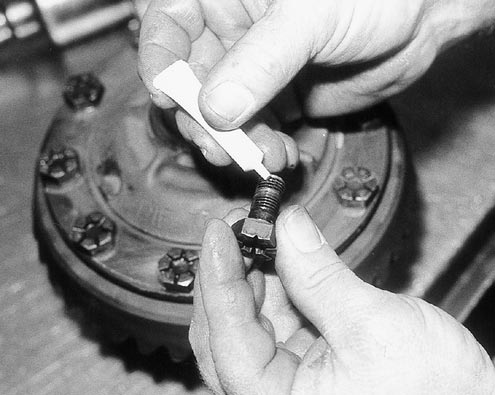

Ring gear installation is next.We’ve opted for 3.55 gears. Use the ring gear bolts to pull the gear onto the differential case. We’re using Loctite on the bolt threads for security.
P104103_image_large

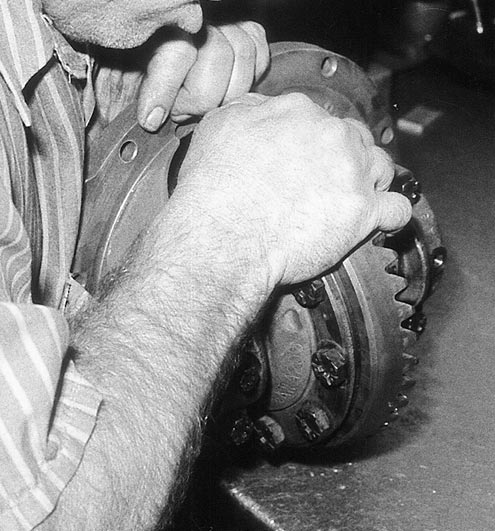

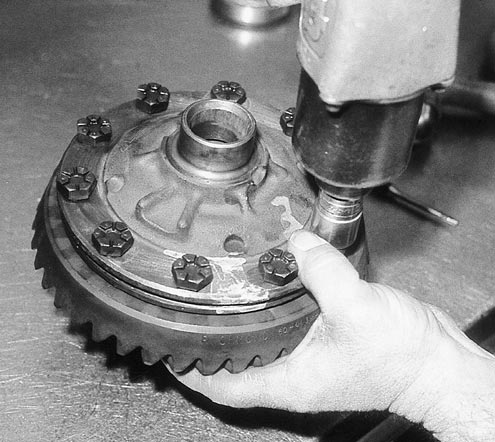

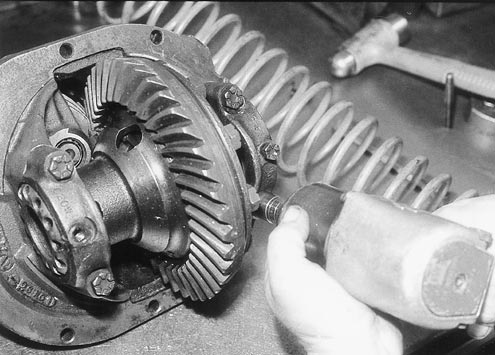

Then the bolts are torqued crisscross between 65 and 75 lb-ft.
P104104_image_large

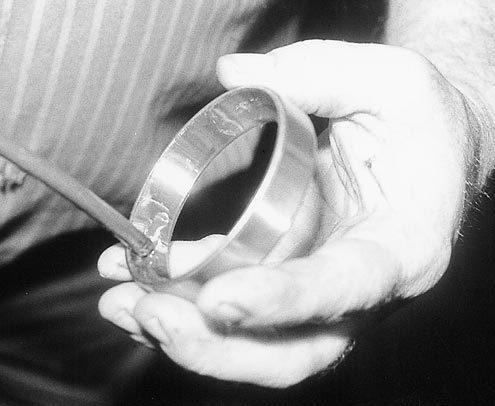

Differential side bearings are pressed onto the case next. Mitch Jackson uses an old inside roller cup from an abandoned bearing as a driver.
P104105_image_large

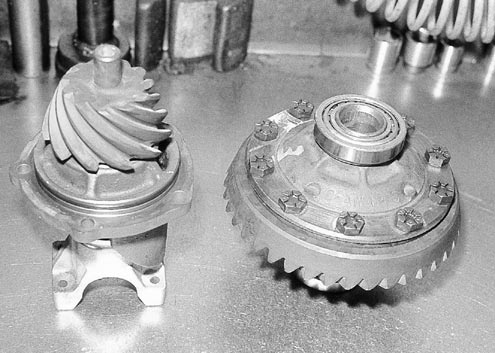

Here are the completely assembled pinion and differential assemblies for your visual reference.
P104106_image_large

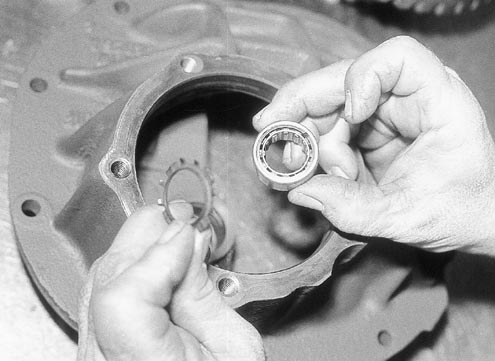

Believe it or not, this is the most expensive part, except for the ring-and-pinion gears. The super-small pinion pilot bearing retails for around $35. Seat this into place, and then install the retainer.
P104107_image_large

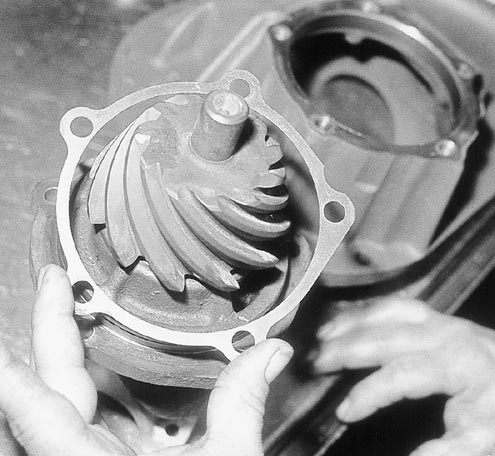

The pinion retainer is shimmed to ensure proper pinion-to-ring gear depth.
P104108_image_large

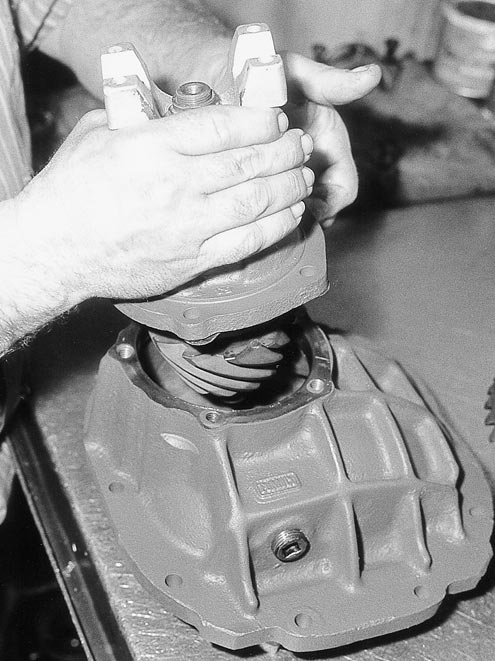

Install the pinion retainer.
P104109_image_large
The differential side bearings are next. Lubricate the races and bearings...
P104110_image_large

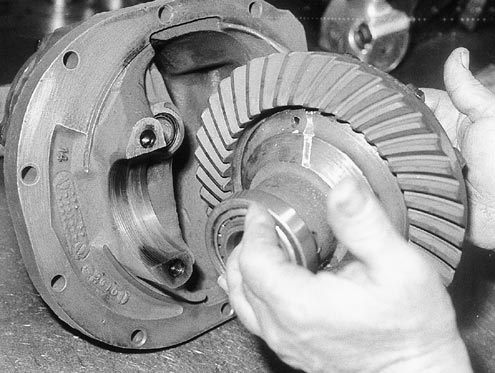

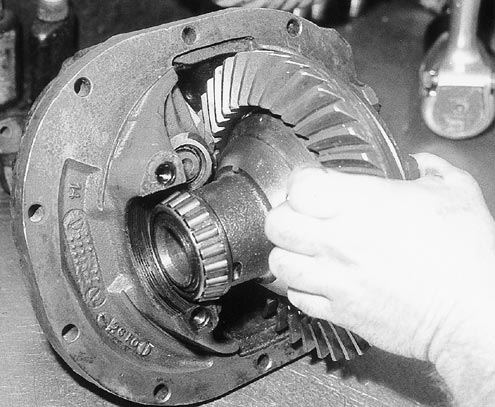

...then seat the ring gear assembly in place.
P104111_image_large
Differential side adjusters are installed next. Get the ring gear centered with a smooth marriage with the pinion, and then tighten the adjusters.
P104112_image_large

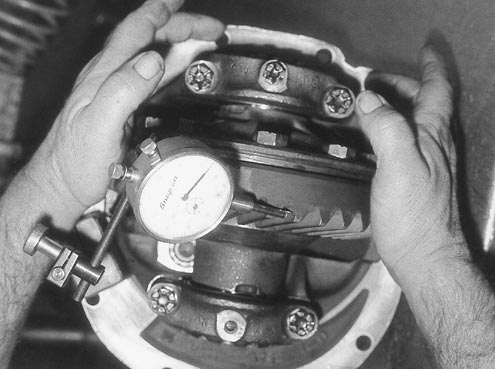

Mitch Jackson of A&M Gear Service checks ring-to-pinion backlash with a dial indicator. Backlash should be between 0.008 and 0.012 inch.
P104113_image_large

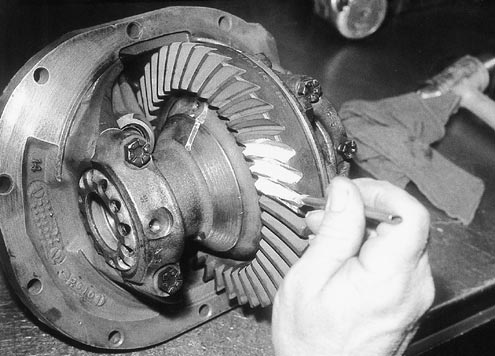

A ring-to-pinion marriage means smooth lapping of the gear teeth. Jackson paints the gear teeth with a lapping compound designed to show tooth depth and positioning.
P104114_image_large
Jackson runs the gears through, and listens for abnormal sounds or binding.
P104115_image_large
After the gears are run through several times, Jackson inspects the pattern in the compound.
P104116_image_large

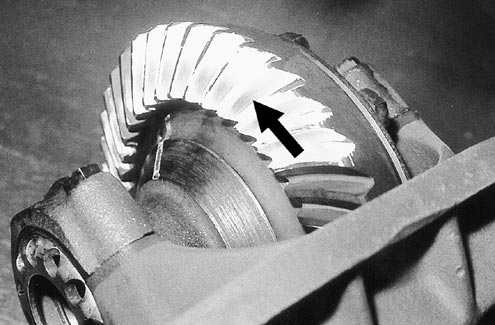

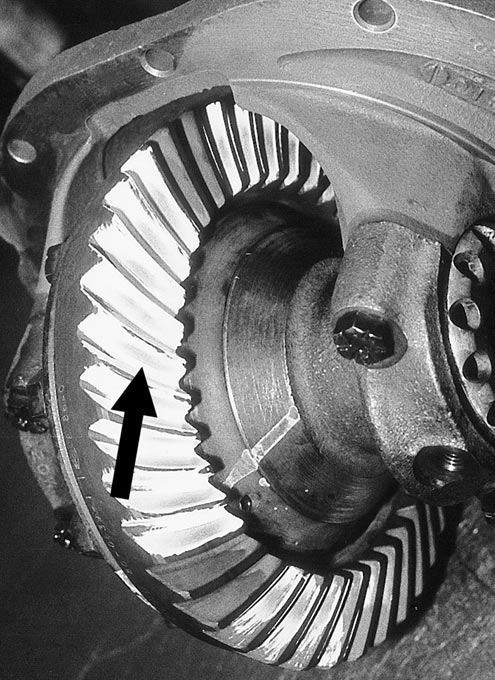

This is what you should see—tooth contact that’s centered on the tooth front and back.
P104117_image_large

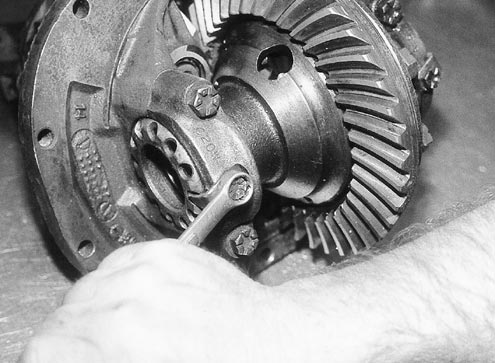

Next, install the differential side bearing adjustment locks.
P104118_image_large

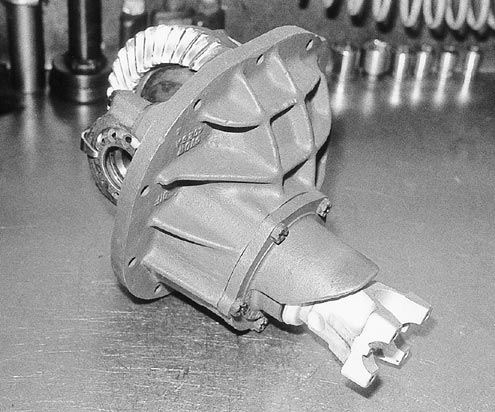

Our completed 8-inch differential is ready for installation. Always remember that if you retrofit your conventional 8-inch to limited-slip, you must use a friction additive in the lubrication for best results.
P104119_image_large

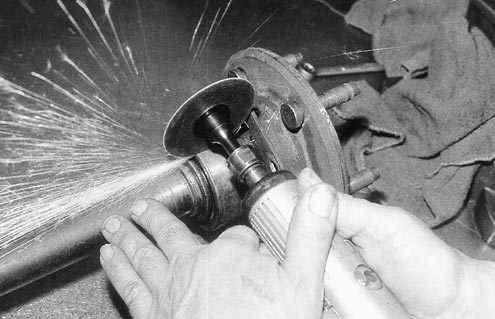

Jackson replaced our axle bearings while he was at it. Old bearings can be driven off with special tools, but Jackson cut our old bearing off with a cutting wheel. Always wear eye and ear protection for this operation.
P104120_image_large

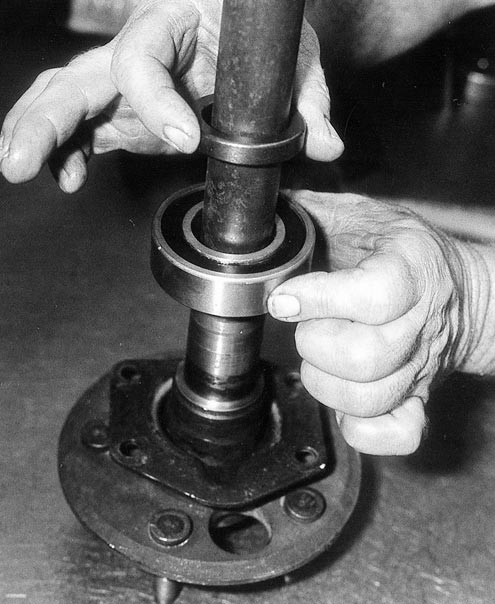

The new axle bearing slips on, followed by the retainer/slipper
P104121_image_large

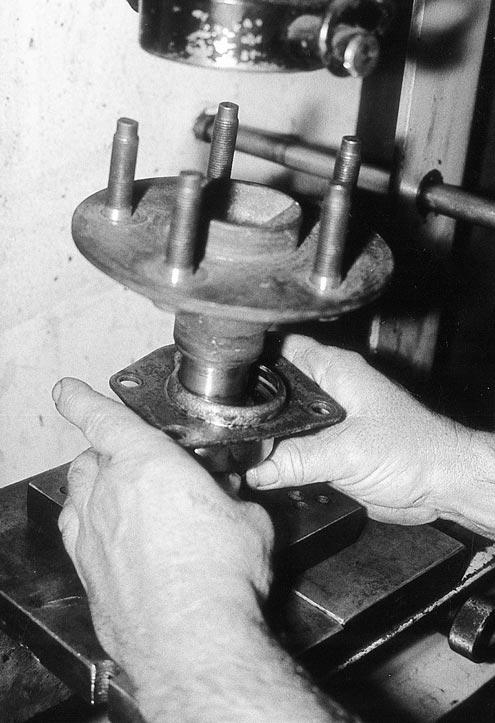

The axle shaft is pressed into the bearing.

Rear axles are something we don't think about often. In fact, rearends are likely the most uninteresting part of a classic Mustang until they fail, or until a sparky upstart blows your doors off at the traffic light, and then you're wishing you had a set of 3.91 gears. When rearends fail, they leave us stranded, or they follow us home in noisy protest.Ford removable carrier differentials perform reliably for thousands of miles with minimal maintenance. Keep the differential serviced with proper lubrication, and you can expect more than a quarter of a million miles without a complaint.We're going to focus on the Mustang's basic V-8 and large six differential—the 8-inch removable carrier unit. The 8-inch differential sports an 8-inch ring gear (hence the name) in a wide variety of ratios ranging from 2.50:1 to 4.11:1. Most common are 2.80:1 and 3.00:1 for small-block Mustangs. We're going to show you how to rebuild an 8-inch removable carrier differential by covering the basics of how to do this in your home garage.At first glance, a differential can be an intimidating sight. It's just downright overwhelming if you've never tried it before. We looked to Mitch Jackson of A&M Gear Service in Southern California for guidance on our 8-inch chunk from a '67 Mustang. Jackson told Mustang Monthly that most differentials wear out due to neglect. He added that the most common wear item is the pinion pilot bearing, which generates the most noise when it fails. If the ring-and-pinion gears are initially properly lapped, they can live a long time, he tells us.
